ODM Data Center Infrastructure Components Quick Disconnect Coupling For Liquid Cooling Solutions

Quick Disconnect Coupling for Liquid Cooling Solutions

The Quick Disconnect Coupling (QDC) is the vital connector ensuring the integrity of the entire liquid cooling circulation system. It enables rapid connection and disconnection of devices without leakage, significantly reducing the workload for liquid maintenance and improving operational efficiency.

Our QDC solutions offer free connection and disconnection under pressure with zero leakage. Available in Manual Self-Fastening and Blind Connection series, they feature highly reliable sealing and support customized materials including stainless steel, aluminum, and copper to meet diverse cooling requirements.

Product Family

Model	Locking Mechanism	Load Type	Working Medium	Description
CGN Series ›	Self-Fastening	Normal	General Coolant	Manual connection via sliding sleeve, steel ball fastening.
CGQ Series ›	Quick Connector	Light Load	Glycol, Aqueous Solution	Direct steel ball fastening for rapid manual operation.
CGB Series ›	Blind Connection	Light Load	Glycol, Aqueous Solution	Locked by external structure (e.g., chassis), no internal fastening.
UQD Series ›	Universal	Universal	Various	Available in 2/4/6/8 inch equivalents, SUS304/316 Base.

View Detailed Datasheet (PDF)

Product Features

Zero-Leakage Guarantee

Our couplings feature a Bidirectional Self-Sealing design. When disconnected, both ends automatically seal to prevent any coolant spillage. This ensures clean maintenance and enables safe "hot-swapping" of liquid-cooled components.

Versatile Material Options

We offer a wide range of sealing materials to match your specific coolant and temperature needs, including EPDM (-45~150°C for Ethylene Glycol), FKM (strong acid/alkali resistance), and NBR. Body materials include SUS304, SUS316, and Anodized Aluminum.

FEATURED PRODUCTS OF liquid COOLING SOLUTIONS

Focus on the core cooling demands of high-density data center deployments, where our full range of liquid cooling products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.

In-Rack / In-Row / In-Room

Intelligent CDU Series

The heart of liquid cooling. Available in Rack-mounted (50-80kW), In-Row (350-900kW), and large-scale In-Room (up to 2MW) configurations. Features N+1 redundancy and smart control.

PUE < 1.2

Immersion Cooling Tank

Single-phase immersion technology for ultimate heat dissipation. Integrated plug-and-play design suitable for edge nodes and high-density clusters. Silent operation with PUE < 1.2.

Prefab & Modular

Prefab Liquid Cooling DC

Rapid-deployment modular data center. A turnkey solution integrating power, liquid cooling (Cold Plate or Immersion), and monitoring. Ideal for AI training and crypto mining.

High-Quality

Key Accessories

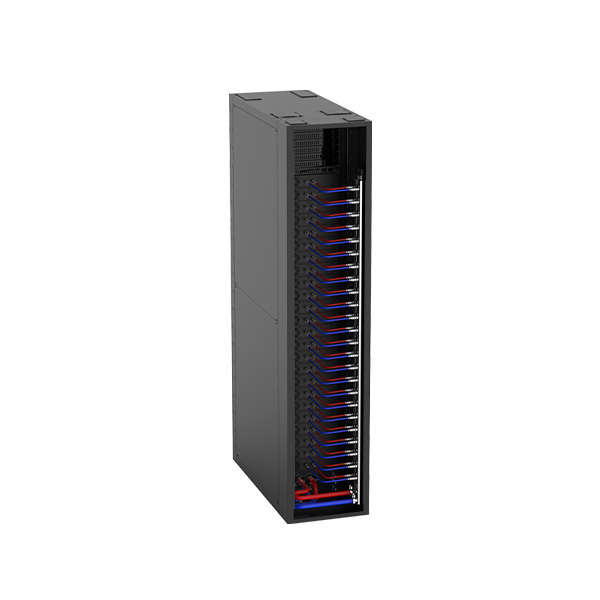

Essential components for safety and efficiency. Includes high-precision Manifolds, flexible Secondary Loops, and Quick Disconnects (QD) with leak-prevention design.

APPLICATIONS

Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.

AI Training & HPC Clusters

High-Density Data Centers

Modular & Container Solutions

Blockchain & Crypto Mining

FAQ

1. What is the difference between Self-Fastening and Blind Connection?

Self-Fastening (e.g., CGN/CGQ) uses an internal steel ball mechanism to lock the connection manually. Blind Connection (e.g., CGB) has no internal lock and relies on external force (like sliding a server into a chassis) to maintain connection, enabling automatic docking.

2. Which sealing material should I choose for data center cooling?

For standard data center coolants like Ethylene Glycol (EG) or Deionized Water, EPDM is recommended due to its excellent compatibility and temperature range (-45°C to 150°C).

3. Do you support customized interfaces?

Yes, we offer a variety of interface modes including Internal Thread, External Thread, Flange, Pagoda (Barb), and Union connectors to match your existing piping infrastructure.
